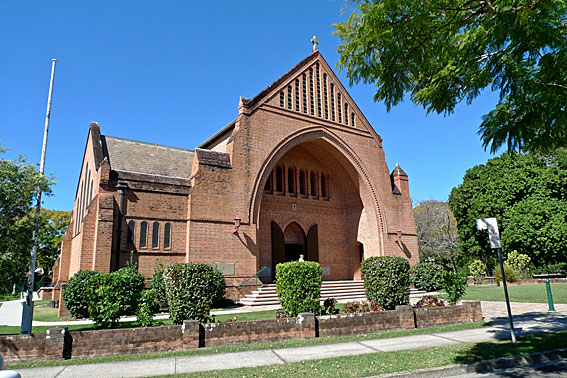

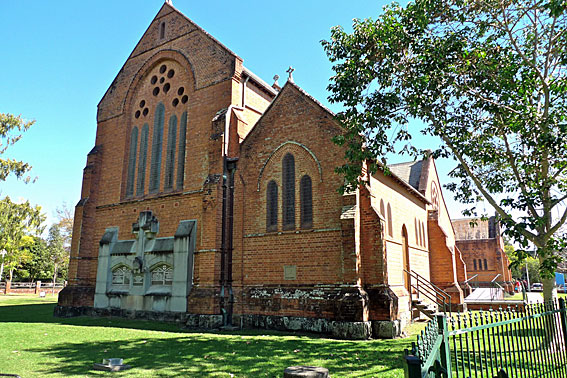

The Cathedral Church of Christ the King

Duke Street, Grafton

Norman & Beard 1903, rebuilt in 1967 by Hill, Norman & Beard
for the Auditorium of the Royal College of Organists in London
refurbished and re-erected in Grafton Cathedral in 1992 by Peter D.G. Jewkes Pty Ltd of Sydney

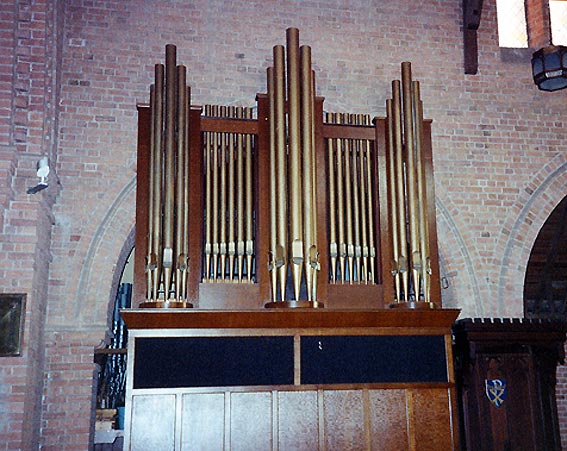

Grafton Cathedral Organ

Photo: Trevor Bunning (Aug 2010)

From the Grafton Cathedral website http://www.graftoncathedral.org.au/:

History of the Organs

The first organ was installed in Christ Church Cathedral in 1884 at a cost of 450 pounds. It was a small instrument of 2 manuals and pedals built by George Fincham of Melbourne, a noted organ builder of the time and founder of a firm still building organs in Victoria.

Packed in five crates the organ was sent to Grafton by ship. The installation was carried out by the organist, Mr Mitchell, and in the Cathedral archives are charmingly pedantic letters from Mr Fincham instructing him exactly how he was to accomplish this task, even down to the fine details of removing the crates from ship to Cathedral.

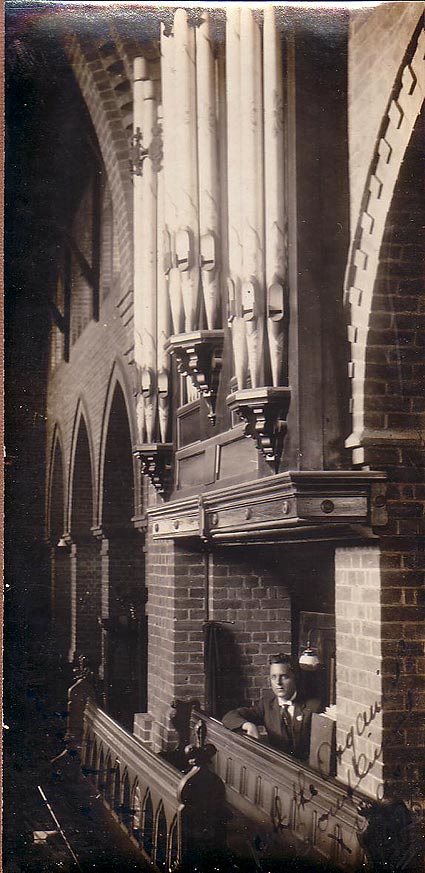

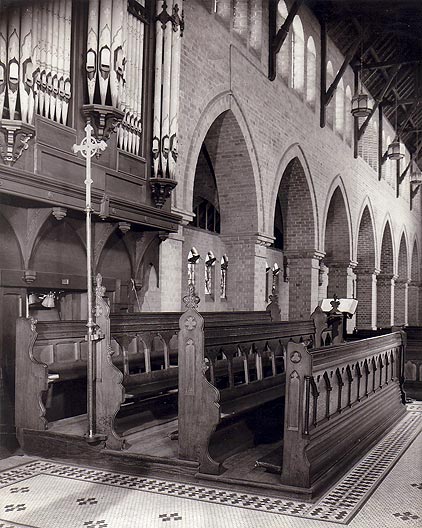

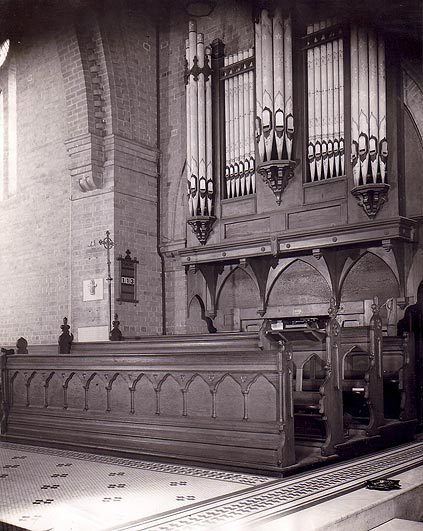

Historical Grafton Cathedral Organ

The late 1950's found the organ in very poor condition, parts even tied up with string, and clearly inadequate for the size of the completed Cathedral. Under the guidance of Mr Ray Matchett, the Cathedral Organist, some additions and electrification of the action were carried out by Hr H J Jarrott of Brisbane and dedicated on September 3rd, 1962.

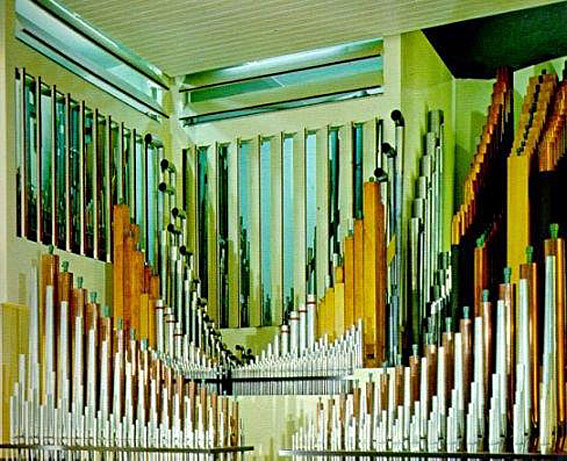

Organ in Previous Location Organ in Previous Location 2

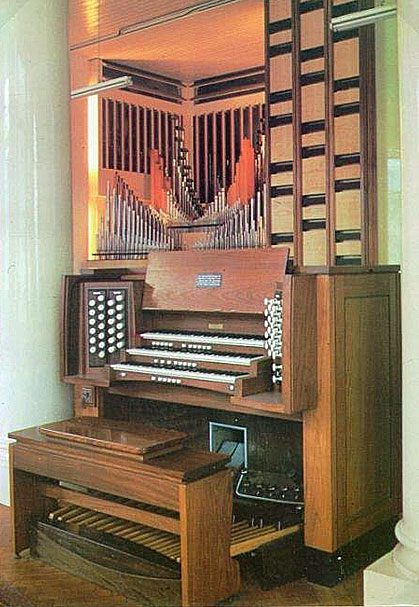

The organ in the Royal College of Organists, Kensington Gore, London

The organ has 3 manuals and pedals and 37 speaking stops with a full range of couplers allowing the divisions to be joined together for extra versatility. A feature is that all speaking stops are individual ranks - there are no "extensions" or "borrowing".

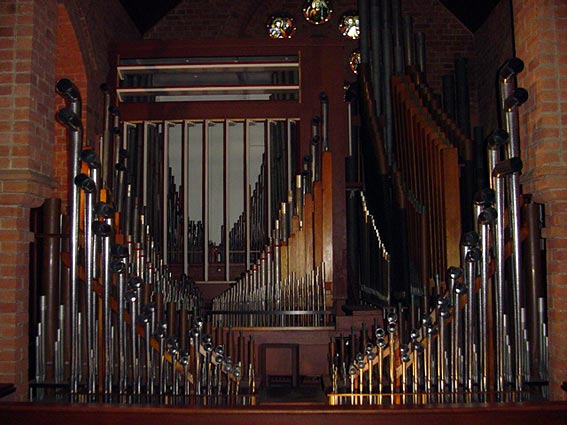

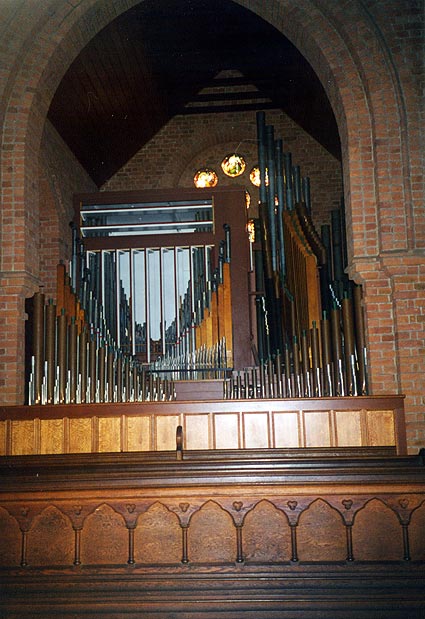

Present Organ

Present organ showing new Solo reed (Robert Eather)

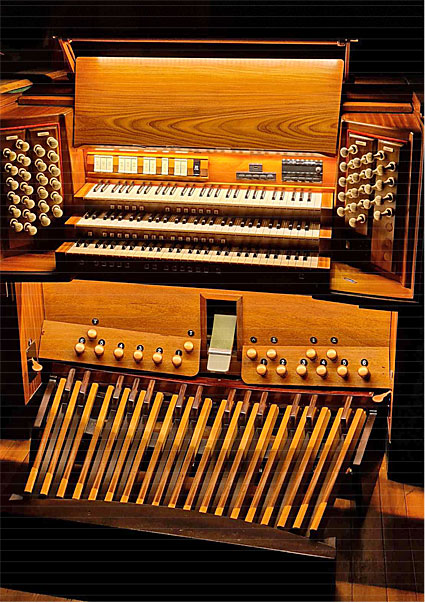

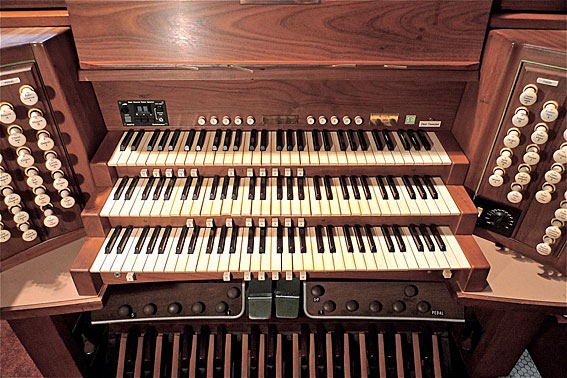

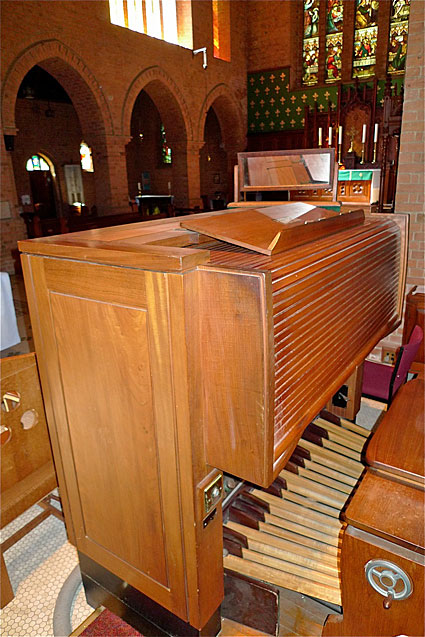

Rebuilt Console

Rebuilt console (2021) [Photo: Ian Brown]

Rebuilding the console

(SOJ Autumn 2021) by Ian Brown:

The Cathedral Church of Christ the King, Grafton, to give it its full title, has been our workplace recently. The story of this organ begins in London where Norman & Beard Ltd of Norwich built a three- manual organ for the Royal College of Organists in 1903.

The specification is:

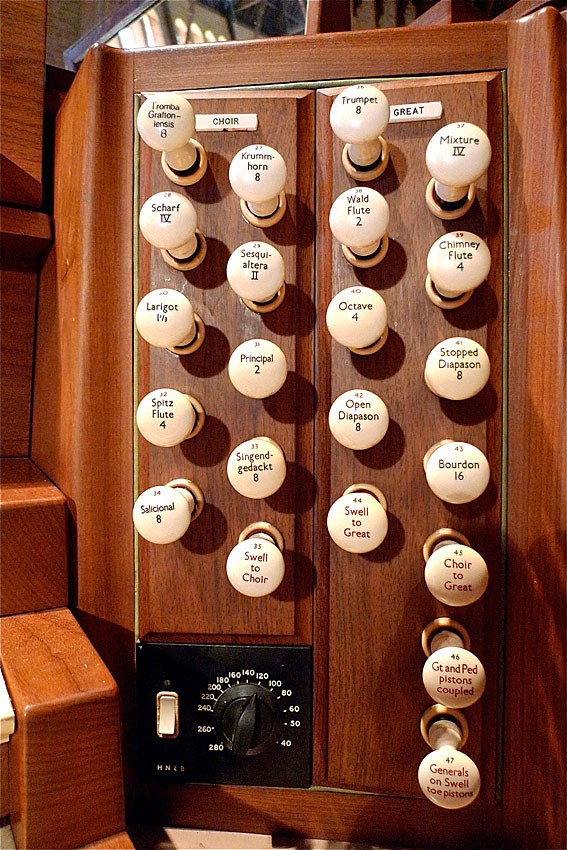

Great Organ
  • 16' Bourdon
  • 8' Open Diapason
  • 8' Stopped Diapason
  • 4' Octave
  • 4' Chimney Flute
  • 2' Wald Flute
  • IV Mixture
  • 8' Trumpet

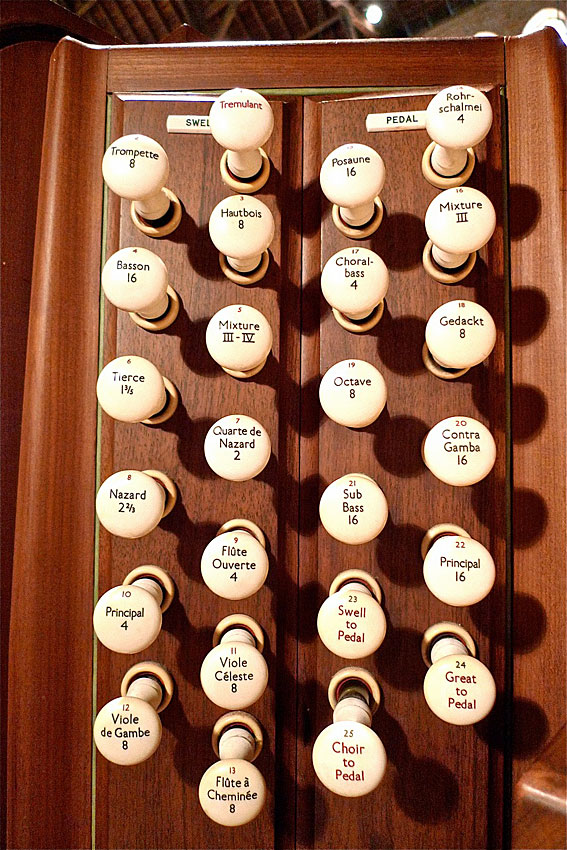

Swell Organ (enclosed)
  • 8' Flûte à cheminée
  • 8' Viole de Gambe
  • 8' Viole Celeste
  • 4' Principal
  • 4' Flute Ouverte
  • 2-2/3' Nazard
  • 2' Quarte de Nazard
  • 1-3/5' Tierce
  • III/IV Mixture
  • 16' Basson
  • 8' Hautbois
  • 8' Trompette
  • Tremulant
Choir Organ (unenclosed)
  • 8' Salicional
  • 8' Singendgedackt
  • 4' Spitz Flute
  • 2' Principal
  • 1-1/3' Larigot
  • II Sesquialtera
  • IV Scharf
  • 8' Krummhorn
  • 8' Tromba Graftoniensis
  • Tremulant
Pedal Organ
  • 32' Contra Bass (added 2016, digital voice by Peterson Electro-Musical Products Inc.)*
  • 16' Major Bass (added 2016, digital voice by Peterson Electro-Musical Products Inc.)*
  • 16' Principal
  • 16' Sub Bass
  • 16' Contra Gamba
  • 8' Octave
  • 8' Gedackt
  • 4' Choralbass
  • III Mixture
  • 32' Contra Posaune (A acoustic in bottom octave, 2016 *)
  • 16' Posaune
  • 4' Rohrschalmei
Couplers
  • Swell to Great
  • Choir to Great
  • Swell to Choir
  • Swell to Pedal
  • Great to Pedal
  • Choir to Pedal
Accessories
Thumb Pistons
  • 5 Adjustable pistons to Great
  • 5 adjustable pistons to Swell
  • 5 adjustable pistons to Choir
  • 10 adjustable pistons to all stops
  • 1 Swell to Choir
  • 1 Choir to Great
  • 1 Great to Pedal
  • 1 Swell to Pedal
  • 1 Choir to Pedal
  • 1 General Cancel
Toe Pistons
  • 5 to Pedal
  • 5 to Swell
  • 1 Swell to Great
  • 1 Great to Pedal
  • 1 Pedal Posaune
  • 2 kick pedals - Great to Pedal (left)
  • Swell to Great (right)
Piston Couplers
  • Great and Pedal pistons coupled
  • General pistons on Swell toe pistons

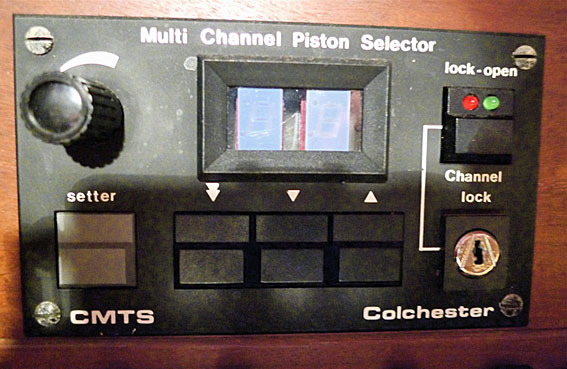

  • Pistons adjustable by capture system
Accessories to the Organ
  • Electric metronome
  • Tremulant speed control
Compass:
  • Manuals CC-c, 61 notes
  • Pedals CCC-g, 32 notes

* Ian D. Brown & Associates, Newsletter (December 2016), p. 2.

Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ

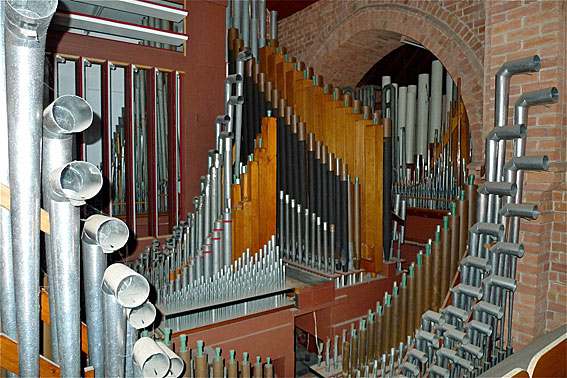

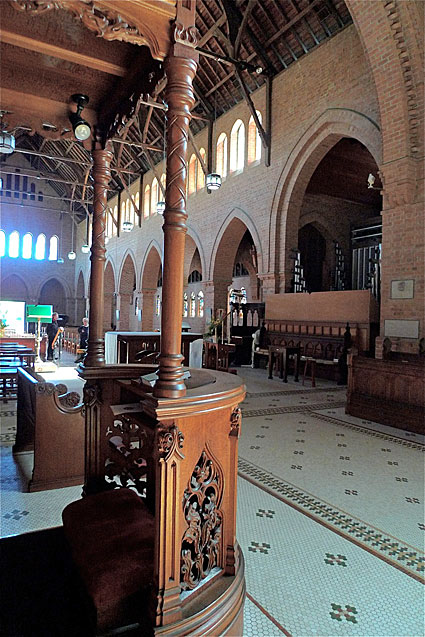

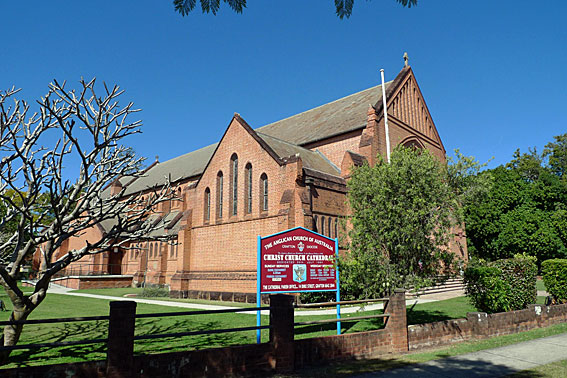

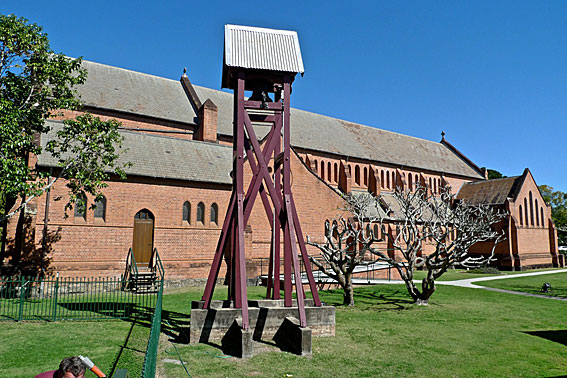

Photos above: Trevor Bunning (Aug 2010)

Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ Grafton Cathedral Organ

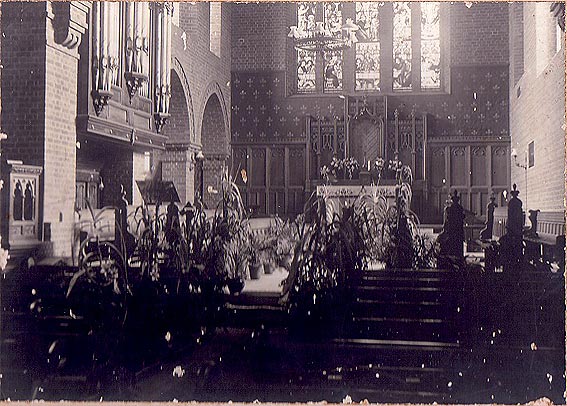

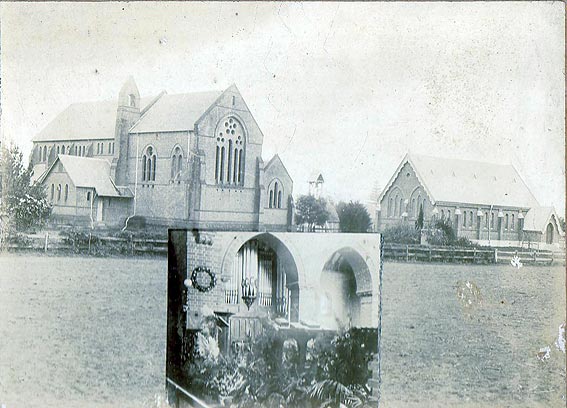

Historic photos: Robert Eather (Cathedral Organist) 2006
